Product Description

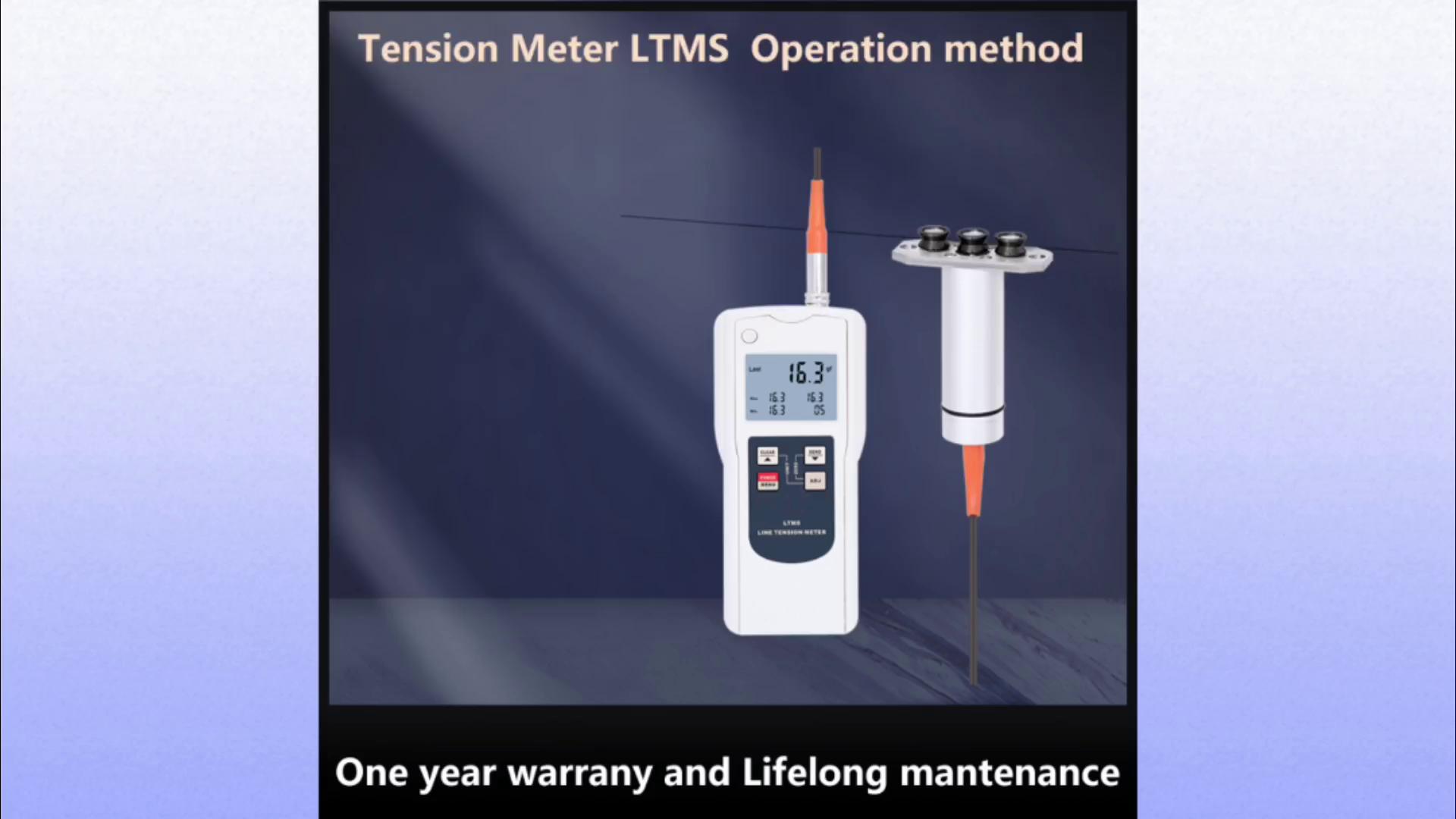

The LTMS Digital Tension Meter is a hand-held device which accurately measures the running as well as static tensions of a wide variety of process materials including yarns, fibers, wires, optical fibers, etc.
Product Feature
* It employs the "three-roller principle" of tension measurement.
* High accuracy and high resolution. Digital display with no guessing or errors.
* With 4 measurement unit for selection and conversion, N, kg, lb, g.
* Current Value, Max. Value, Peak Value, Min Value can be displayed at the same time.
* With 10 minutes auto power off and manual power off.
* The Meter takes 62 tension measurements per second and displays the average of these measurements over a user-selected interval of 0.5, 1.0, 2.0 or 4.0 seconds, the Display Update Rate.
* With data output function. Measurement data can be transmitted to computer by USB cable or Bluetooth adapter for various analysis.
Product Parameters
Model
| LTMS-200 | LTMS-500 | LTMS-1K | LTMS-2K | LTMS-5K | LTMS-10K | LTMS-20K | LTMS-50K |
| Tension Range | 0~0.2kgf | 0~0.5kgf | 0~1.0kgf | 0~2.0kgf | 0~5.0kgf | 0~10.0kgf | 0~20.0kgf | 0~50.0kgf |
| 0~200gf | 0~500gf | 0~1000gf | 0~2000gf | 0~5000gf |
|
|
|
| 0~1.96N | 0~4.9N | 0~9.8N | 0~19.6N | 0~49N | 0~98N | 0~196N | 0~490N |
| 0~0.44Lbf | 0~1.1Lbf | 0~2.2Lbf | 0~4.4Lbf | 0~11Lbf | 0~22Lbf | 0~44Lbf | 0~110Lbf
|
| Resolution | 0.001kgf | 0.001kgf | 0.001kgf | 0.001kgf | 0.01kgf | 0.01kgf | 0.01kgf | 0.01kgf |
| 1gf | 1gf | 1gf | 1gf | 1gf |
|
|
|
| 0.001N | 0.001N | 0.001N | 0.01N | 0.1N | 0.1N | 0.1N | 0.1N |
| 0.001Lbf | 0.001Lbf | 0.001Lbf | 0.001Lbf | 0.01Lbf | 0.1Lbf | 0.1Lbf | 0.1Lbf |
| Accuracy | ±1.0% or better
| ±1.5% or better |
Unit
| kgf, gf, N, Lbf
|
| Measuring Principle | Strain gauge |
| Measuring Frequency | 16 msec (62.5 samples/sec) |
| Sensing Roller | Deflection of Sensing Roller (max.) 0.2mm
|
| Overload Capacity | 150% of Full Scale
|
| Temperature Coefficient | Zero: less than +0.3% FS/°C Span: less than +0.01% FS/°C |
| Display | Blue Back light LCD |
| Display Update Rate | 0.5, 1.0, 2.0 or 4.0 seconds, dip-switch selectable |
| Memory System | Current Value, Max. Value, Peak Value, Min Value |
| Over range Indicator | Buzzer Alarm |
| Power Off | 10 Minutes Auto Power Off, Manual Power Off |
| Data Output | USB, Bluetooth
|
| Working Environment |
|
|
|
|
|
|
| Temperature 0°C ~ 50°C
|
|
|
|
|
|
|
| Humidity <85% RH
|
| Size |
|
|
|
|
|
|
| 140×70×30 mm
|
Power Supply
|
|
|
|
|
|
|
| 4x1.5v AAA (UM-4) battery
|
Host Weight
|
|
|
|
|
|
|
| 130g (Not including Batteries)
|
Probe Weight
|
|
|
|
|
|
|
| 230 g
|
Product Accessories
Standard Accessories
| Main Unit
|
Test Block |
Carrying Case
|
Operation Manual
|
Optional Accessories | USB data output、Bluetooth |
CATALOG
MANUAL
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
The following three items are basic optional accessories choices
Standard Accessories+USB data output
Standard Accessories+Bluetooth data output
Bluetooth Accessories
Amittari instruments generally can be supplied with Bluetooth™ data output function ( except few instruments ) . As Bluetooth™ data output is included in optional accessories, not standard delivery,it needs to be indicated when choose.10 meters to 100 meters distance can be chosen.Please kindly contact with the customer-service worker if you need Bluetooth™ data output.
